You can start a recording* from the CORE 500™ and keep your mobile device in your pocket. Or, you can start a recording from the Eko App.
Note
The CORE 500™ must be actively connected to the Eko App via Bluetooth in order to take recordings from the device or the Eko App.
Note: Some features may require a paid Eko App membership. Your Eko App screens may differ from what's shown here.
Recording settings
With these recording settings on the Eko App Menu screen, you can customize how your recordings are taken.
-

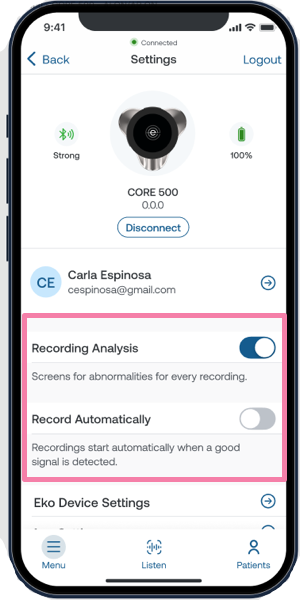

The Recording Analysis setting screens for abnormalities* for every recording when turned on (default).
-
The Record Automatically setting shows only if you have Recording Analysis turned on. Turn on if you want the recording to begin automatically when a good signal is detected. Turn off if you want to start the recording yourself.
-

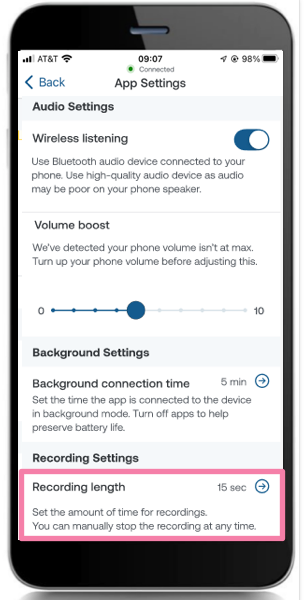

In the App Settings section, the Recording Length setting controls the recording length of time. Select from the various options.
To learn more about managing settings in the Eko App, see Manage account, app, and device settings on the Eko App.
-
Open the Eko App and make sure the CORE 500™ is connected.
-

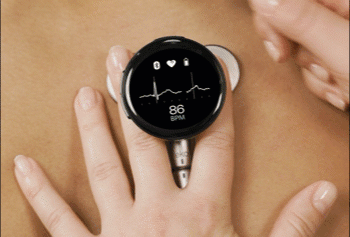

Place the device on the patient.
-
Press the top button for 2 seconds to start the recording, or, if you have the Record Automatically setting turned on, the recording starts when a good signal is detected.
-
The bars encircling the device interface light up green to indicate recording is in process.
-
To manually stop the recording before the timer ends, press the top button again for 2 seconds. Otherwise, the recording automatically stops after the length of time selected in the Recording Length setting in the Eko App.
-
Review and/or assign the recording to a patient* in the Eko App. Here's how.
Take multiple recordings at a time with the CORE 500™
*Some features may require a paid Eko App membership.
|
LBL: |
0002076 Rev.3.0 |
|
Date of Issue: |
September 8, 2023 |
