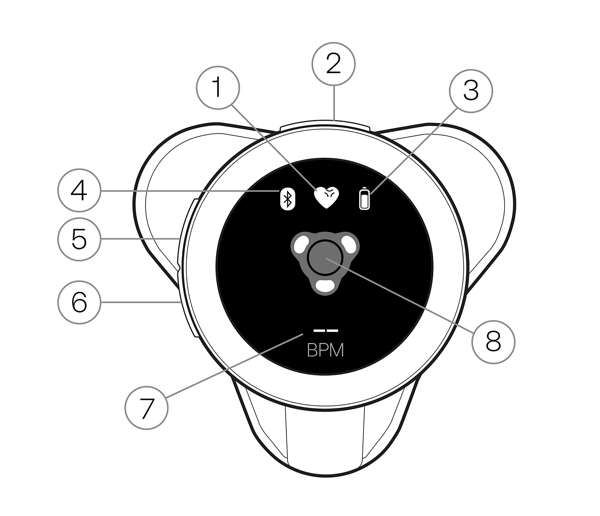

The screen shows different data depending on whether the CORE 500™ is in resting state (on but not actively being used) or active state (placed on patient).
|
Number |
Description |
|---|---|
|
1 |
Current audio filter:
Each filter has been optimized for the unique frequency of these sounds. See CORE 500™ audio filters. |
|
2 |
Top button:
|
|
3 |
Battery level. See CORE 500™ battery and charging. |
|
4 |
Bluetooth connection status. |
|
5 |
Volume up button. See Volume and audio. |
|
6 |
Volume down button. See Volume and audio. |
|
7 |
Real-time heart rate in beats per minute. If the rate can’t be detected, two dashes appear instead. The CORE 500™ calculates heart rate from heart sound data, or PCG. |
|
8 |
Leads indicator (used for ECG). This only shows for cardiac and wide audio filters. ImportantECG readings require contact with skin.
|
|
Number |
Description |
|---|---|
|
9 |
Current audio filter. |
|
10 |
Recording in progress when these bars light up around the screen. See Take a recording with the CORE 500™. |
|
11 |
ECG waveform (shown in cardiac and wide filter). The device must make contact with skin to get an ECG signal. NoteOn the device, you’ll see the single ECG strip. We recommend using the Eko App to read and interpret the full 3-lead ECG. |
|
12 |
Real-time heart rate in beats per minute. If the rate can’t be detected, two dashes appear instead. The CORE 500™ calculates heart rate from heart sound data, or PCG. |
|
13 |
1-second intervals. |
|
14 |
0.2-second intervals. |
|
LBL: |
0002035 Rev.1.0 |
|
Date of Issue: |
June 26, 2023 |
